LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2010
>>
Mustang Base, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector Views
>>
Digital Transmission Range Sensor Connector - C167
Digital Transmission Range Sensor Connector - C167

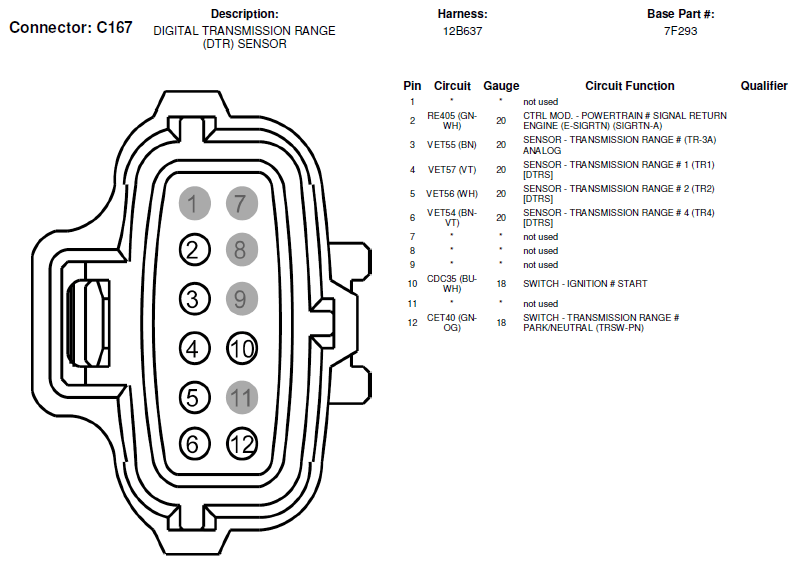

Fig 1: Digital Transmission Range Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
