Mustang Base, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector Views
>>
Blower Motor Speed Control Connector - C2185
Blower Motor Speed Control Connector - C2185

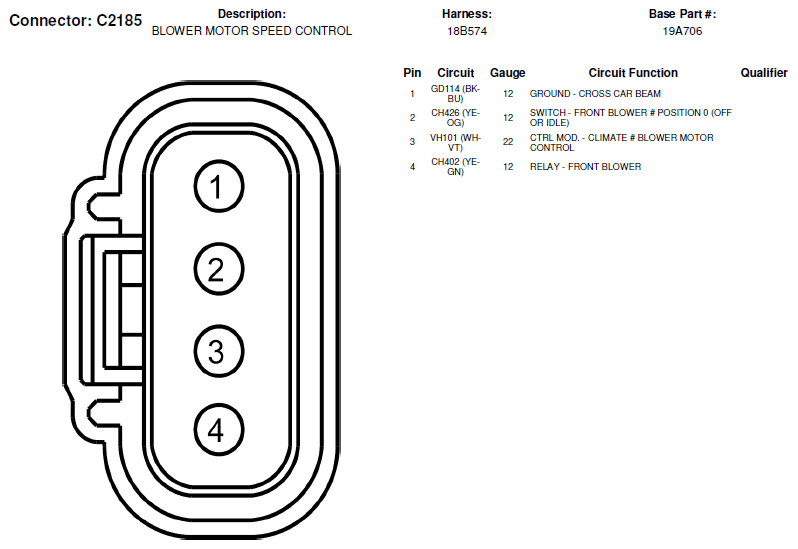

Fig 1: Blower Motor Speed Control Connector End View (C2185)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
