RH Side

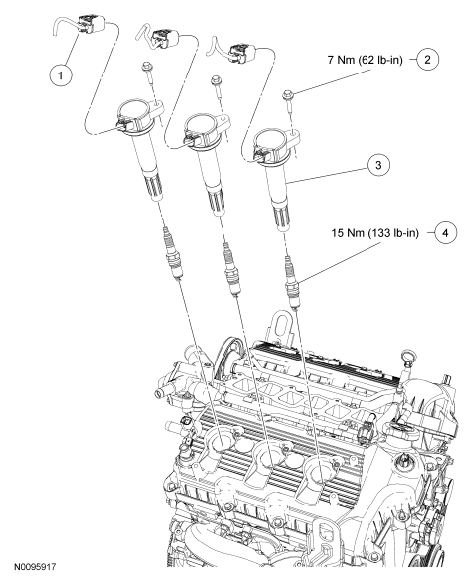

Fig 1: Engine Ignition Replacement Components - RH Side With Torque Specifications
G06272495Courtesy of FORD MOTOR CO.
PART NUMBER DESCRIPTION CHART

Item Part Number Description
1 14A464 RH ignition coil-on-plug electrical connector (part of 12B637) (3 required)
2 W708833 RH ignition coil-on-plug bolt (3 required)
3 12A375 RH ignition coil-on-plug (3 required)
4 12405 Spark plug (3 required)
  1. For additional information, refer to the appropriate procedures.
