Transaxle Support Insulator: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Install the Engine Support Bar and Adapters and support the engine.

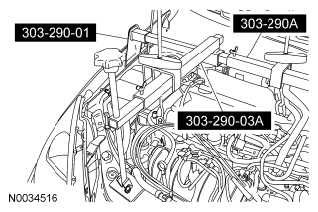

    Fig 1: Identifying Engine Support Bar And Adapters With Support Engine
    G06439730Courtesy of FORD MOTOR CO.
  3. Remove the transaxle support bolt and nuts and remove the transaxle support insulator.
    Fig 2: Locating Transaxle Support Bolt And Nuts
    G06292847Courtesy of FORD MOTOR CO.
