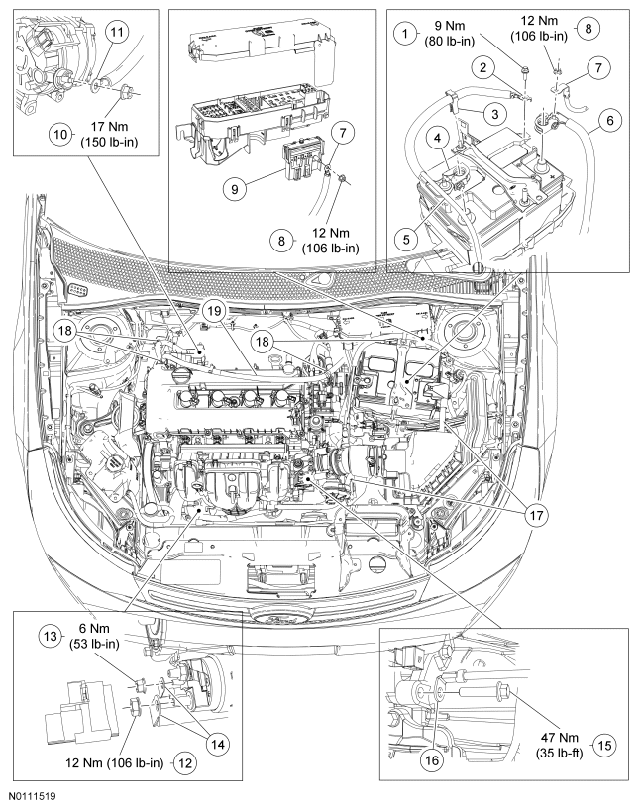

Battery Cables: Notes
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W705661-S | Battery ground cable body terminal bolt |
| 2 | 14463 | Battery ground cable body terminal (part of 14A280) |
| 3 | 14A163 | Battery ground cable locator (part of 14A280) |
| 4 | - | Battery terminals (part of 14A280) |
| 5 | 14A280 | Battery ground cable |
| 6 | 14A280 | Positive battery cable |
| 7 | 14463 | Battery Junction Box (BJB) terminal (part of 14290) |
| 8 | W520102 | BJB terminal nut (part of 14300) |
| 9 | 14526 | 100A/200A Fuse assembly |
| 10 | W711953 | Generator B+ terminal nut (part of 14300) |
| 11 | 14452 | Generator B+ terminal (part of 14300) |
| 12 | W701596-S | Positive battery cable starter solenoid terminal nut |
| 13 | W704141-S | Positive battery cable starter solenoid wire terminal nut |
| 14 | 14488 | Starter solenoid terminals (part of 14300) |
| 15 | W500521-S | Battery ground cable engine terminal bolt |
| 16 | 14463 | Battery ground cable engine terminal (part of 14A280) |
| 17 | 14A163 | Positive battery cable clips (2 required) (part of 14A280) |
| 18 | 14A163 | Alternator cable clips (4 required) (part of 14300) |
| 19 | 14A163 | Alternator cable (part of 14300) |
