Selector Lever Knob: Notes

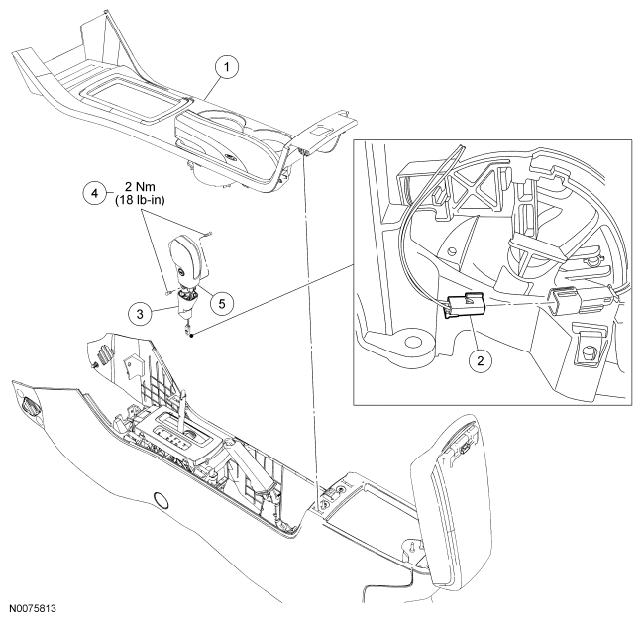

Fig 1: Selector Lever Knob Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	5404567	Center console trim cover
2	7C453	Transmission Control Switch (TCS) electrical connector
3	-	Selector lever knob shroud (part of 7L010)
4	W701894-S437	Selector lever knob screws
5	7L010	Selector lever knob
