Master window control switch - Sedan: Schematic

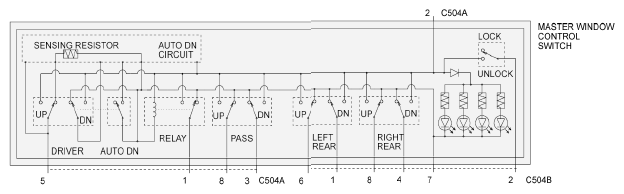

Fig 1: Master Window Control Switch (Sedan) - Schematic

G06357946

Courtesy of FORD MOTOR CO.
