Roof opening panel control switch: Schematic

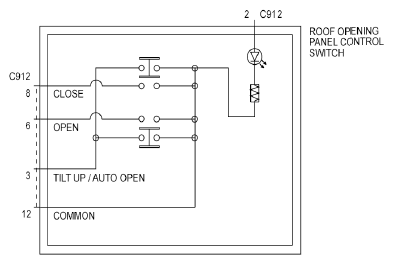

Fig 1: Roof Opening Panel Control Switch - Schematic

G06308819

Courtesy of FORD MOTOR CO.
