Message Center Switch Connector - C253

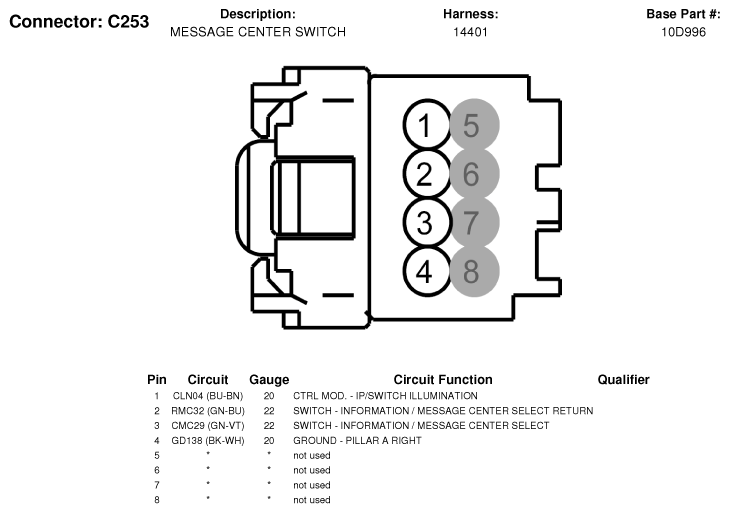

Fig 1: Message Center Switch Connector End View (C253)

G06304443

Courtesy of FORD MOTOR CO.
