Audio Control Switch Connector - C2208

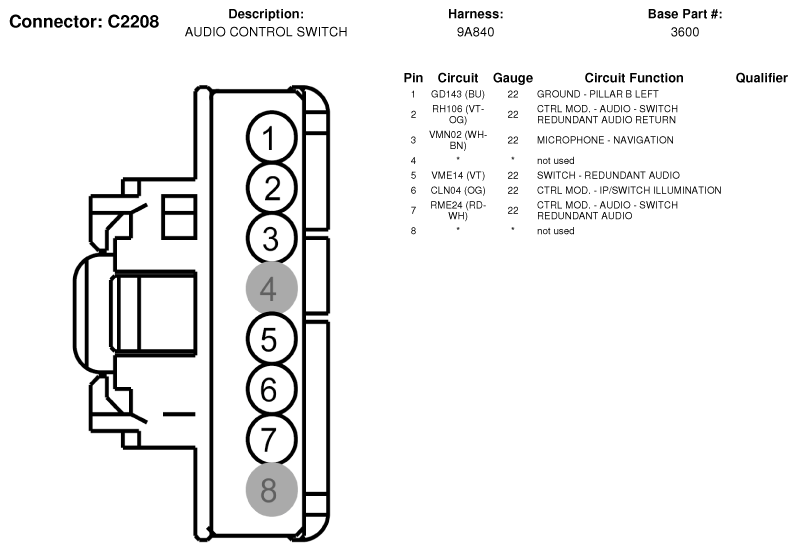

Fig 1: Audio Control Switch Connector End View (C2208)

G06304642

Courtesy of FORD MOTOR CO.
