Transmission Control (TC) Switch: Notes

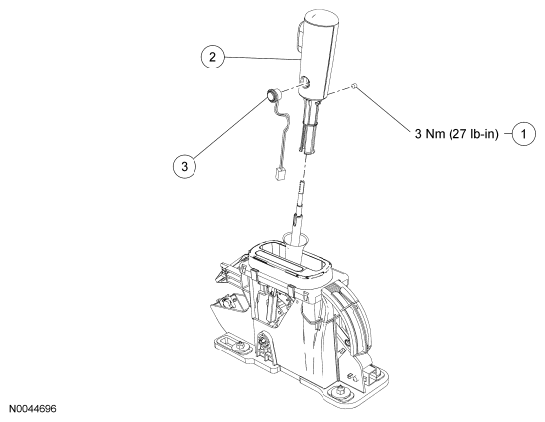

Fig 1: Transmission Control Switch, Selector Lever Knob And Selector Lever Knob Set Screws With Torque Specifications
G06398640Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Selector lever knob set screw
2 7213 Selector lever knob
3 7G550 Transmission Control Switch (TCS)
