Toe Adjustment - Front

Using alignment equipment and the manufacturer's instructions, measure the front toe.
Start the engine and center the steering wheel.
Turn the engine OFF and, using a suitable holding device, lock the steering wheel in the straight ahead position.

NOTE: Do not allow the steering gear bellows to twist when the front wheel inner tie rod is rotated.

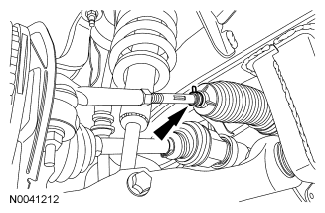

Fig 1: Locating Clamp

Courtesy of FORD MOTOR CO.

Remove the clamps.
Loosen the tie-rod jam nuts.

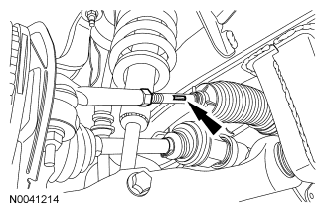

Fig 2: Locating Tie-Rod Jam Nut
Courtesy of FORD MOTOR CO.
Rotate the front wheel inner tie rods until the toe setting is within specification.

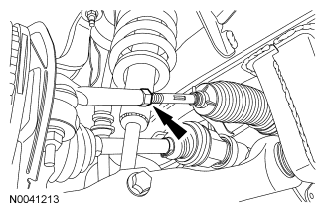

Fig 3: Locating Front Wheel Inner Tie Rod
Courtesy of FORD MOTOR CO.

NOTE: Make sure to hold the tie-rod end stationary while tightening the nut or damage to the steering gear bellows can occur.

NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.
