Rear Disc Brake: Notes
WARNING: This page is about a different car, the 2009 Mercury Mountaineer, 2009 Ford Explorer Sport Trac, and 2009 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
Metal Brake Parts Cleaner
PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |
Penetrating and Lock Lubricant
XL-1 (US); CXC-51-A (Canada) |
- |
Courtesy of FORD MOTOR CO.

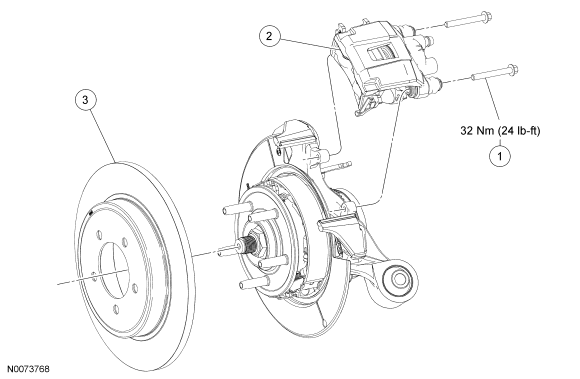

| Item |
Part Number |
Description |
| 1 |
2333 |
Brake caliper guide pin bolt (2 required) |
| 2 |
- |
Brake caliper and brake pad assembly |
| 3 |
2C026 |
Brake disc |
