Rear Brake Pads: Notes
WARNING: This page is about a different car, the 2009 Mercury Mountaineer, 2009 Ford Explorer Sport Trac, and 2009 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
High Performance DOT 3 Motor Vehicle Brake Fluid
PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |
Courtesy of FORD MOTOR CO.

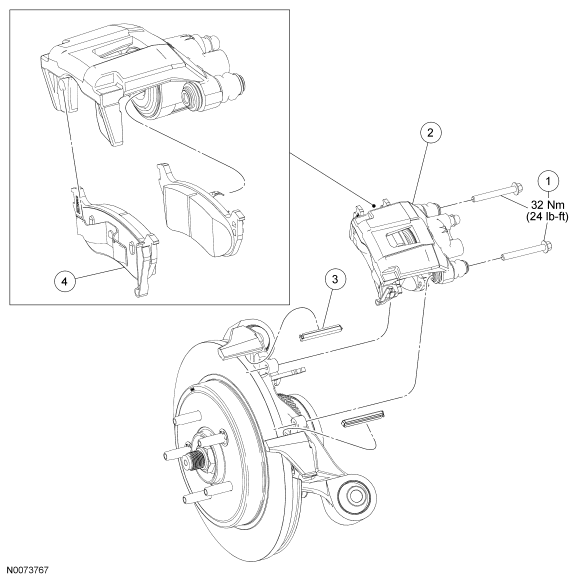

| Item |
Part Number |
Description |
| 1 |
2333 |
Brake caliper guide pin bolts (2 required) |
| 2 |
2552 RH/ 2553 LH |
Brake caliper |
| 3 |
- |
Brake pad clip (part of 2200) (2 required) |
| 4 |
2200 |
Brake pad |
