Rear Brake Caliper: Notes
WARNING: This page is about a different car, the 2009 Mercury Mountaineer, 2009 Ford Explorer Sport Trac, and 2009 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |

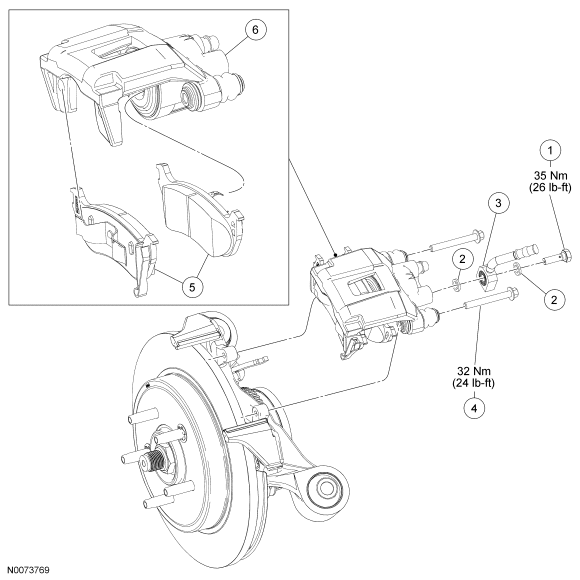

| Item | Part Number | Description |
|---|---|---|
| 1 | 385116 | Brake flexible hose flow bolt |
| 2 | 2149 | Copper washers (2 required) |
| 3 | 2282 | Brake flexible hose |
| 4 | 2333 | Brake caliper guide pin bolt (2 required) |
| 5 | 2200 | Brake pads |
| 6 | 2552 RH/ 2553 LH | Brake caliper |
