Console - Overhead: Notes

Overhead Console With Roof Opening Panel

Fig 1: Identifying Overhead Console With Roof Opening Panel

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	519A70	Overhead console
2	-	Overhead console retaining clip (4 required) (part of 519A70)
3	14334	Overhead console wiring harness

Overhead Console Without Roof Opening Panel

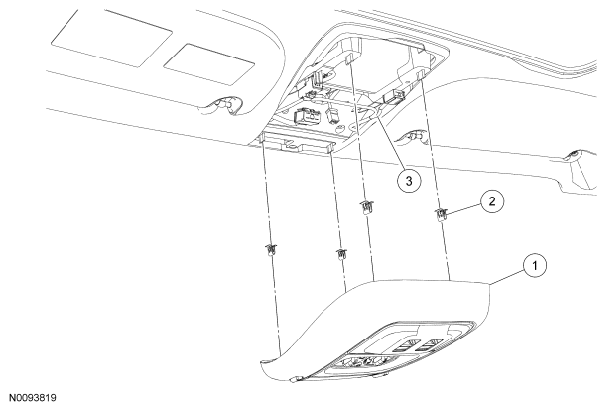

Fig 2: Identifying Overhead Console Without Roof Opening Panel

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	519A70	Overhead console
2	-	Overhead console electrical connector (part of 14334)
3	-	Overhead console screw
