Smart Junction Box (SJB): Notes
WARNING: This page is about a different car, the 2009 Mercury Mountaineer, 2009 Ford Explorer Sport Trac, and 2009 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

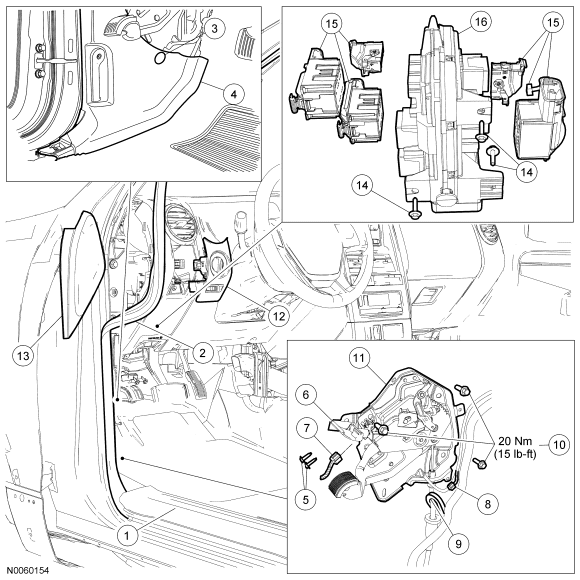

| Item | Part Number | Description |
|---|---|---|
| 1 | 13208 | Driver door scuff plate |
| 2 | - | LH door weather seal |
| 3 | - | Cowl side trim panel push pin |
| 4 | 7802344 | Cowl side trim panel |
| 5 | W707628 | Parking brake release handle bolts (2 required) |
| 6 | - | Parking brake release handle |
| 7 | - | Parking brake switch electrical connector |
| 8 | - | Hood release cable push pin |
| 9 | - | Harness clip |
| 10 | N806497 | Parking brake control bolts (3 required) |
| 11 | 2780 | Parking brake control |
| 12 | 11654 | Headlight switch assembly |
| 13 | 7804481 | LH instrument panel side finish panel |
| 14 | - | Smart junction box (SJB) bolts (3 required) |
| 15 | - | SJB electrical connectors (5 required) |
| 16 | 15604 | SJB |
