Hydraulic Control Unit (HCU): Material
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) | WSS-M6C62-A or WSS-M6C65-A1 |

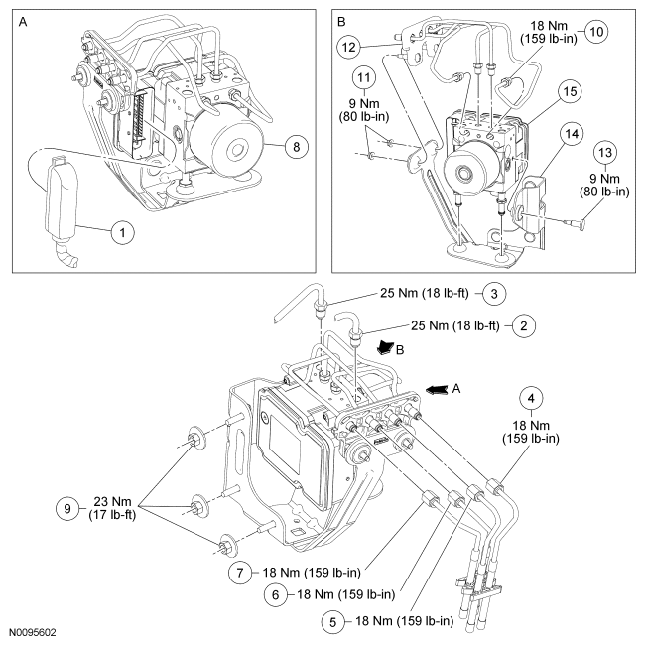

PARTS DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS module electrical connector (part of 14398) |
| 2 | 2234A | Master cylinder primary brake tube-to-Hydraulic Control Unit (HCU) fitting |
| 3 | 2234B | Master cylinder secondary brake tube-to-HCU fitting |
| 4 | 2263 | RH front brake tube-to-HCU extension tube fitting |
| 5 | 2264 | LH front brake tube-to-HCU extension tube fitting |
| 6 | 2C008A | RH rear brake tube-to-HCU extension tube fitting |
| 7 | 2C008B | LH rear brake tube-to-HCU extension tube fitting |
| 8 | 2C215 | HCU assembly |
| 9 | W803826 | HCU bracket-to-frame nuts (3 required) |
| 10 | - | HCU extension tube-to-HCU fitting (4 required) (part of 2C296) |
| 11 | N803826 | HCU bracket-to-HCU extension tube retainer nuts |
| 12 | 2C296 | HCU extension tube retainer assembly |
| 13 | 2M101B | HCU bracket-to-HCU bolt |
| 14 | 2C304 | HCU bracket |
| 15 | 2C215 | HCU |
