Wiper and Washer System - Exploded View: Notes
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

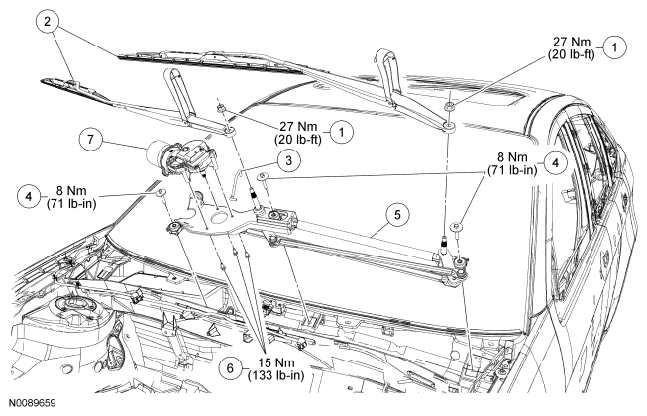

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiper pivot arm nuts (2 required) |
| 2 | - | Wiper pivot arms (2 required) |
| 3 | 19K266 | Cowl panel support brace |
| 4 | W710317 | Wiper mounting arm and pivot shaft bolts (3 required) |
| 5 | 17504 | Wiper mounting arm and pivot shaft assembly |
| 6 | - | Wiper motor bolts (3 required) |
| 7 | 17504 | Wiper motor |
