Lower Arm: Notes
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

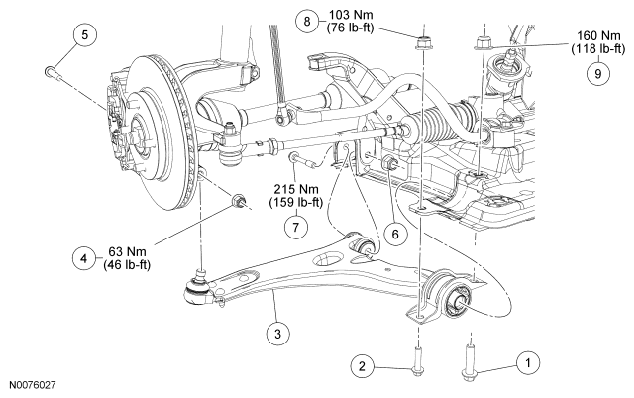

Vehicles with 15- or 16-inch wheels shown, vehicles with 17-inch wheels similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500442 | Lower arm outboard bracket bolt |
| 2 | W500562 | Lower arm inboard bracket bolt |
| 3 | 3051 | LH/3042 RH Lower arm |
| 4 | W520213 | Ball joint nut |
| 5 | W712393 | Ball joint bolt |
| 6 | W520215 | Lower arm forward nut |
| 7 | W706861 | Lower arm forward bolt |
| 8 | W520215 | Lower arm outboard bracket nut |
| 9 | W520214 | Lower arm inboard bracket nut |
