Home >> Ford >> 2010 >> Expedition RWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Stability Control Sensor Cluster Connector - C3073

Stability Control Sensor Cluster Connector - C3073

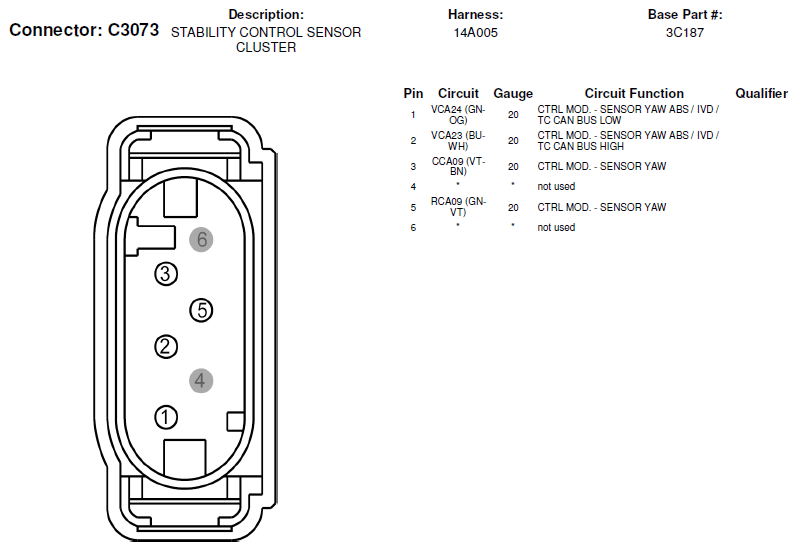

Fig 1: Stability Control Sensor Cluster Connector End View (C3073)

G06304227

Courtesy of FORD MOTOR CO.
