Compressor to Condenser Discharge Line: Material
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL CHART
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

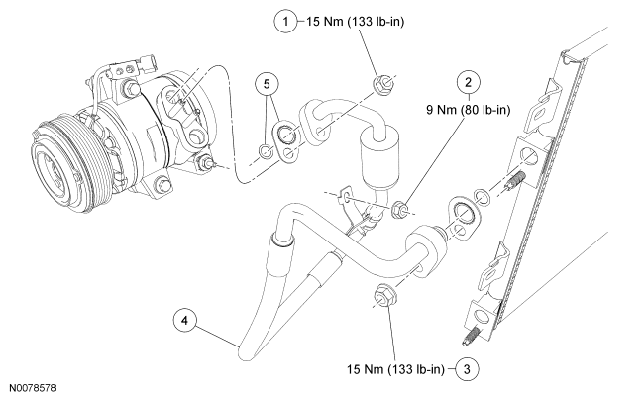

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor discharge fitting nut |
| 2 | W520101 | Compressor-to-condenser discharge line bracket nut |
| 3 | W520413 | A/C condenser inlet fitting nut |
| 4 | 19972 | Compressor-to-condenser discharge line |
| 5 | 19B596 | O-ring seal and gasket seal kit (2 required) |
