Variable Camshaft Timing (VCT) Oil Control Solenoid: Notes

NOTE: LH shown, RH similar.

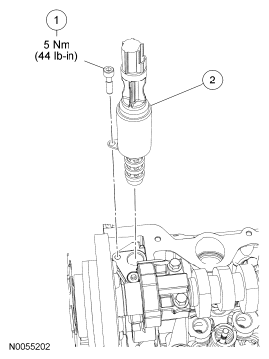

Fig 1: Variable Camshaft Timing (VCT) Oil Control Solenoid Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	6C260	Variable Camshaft Timing (VCT) oil control solenoid bolt
2	6C297	VCT  oil control solenoid
