Reversing Lamp Switch: Notes

WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

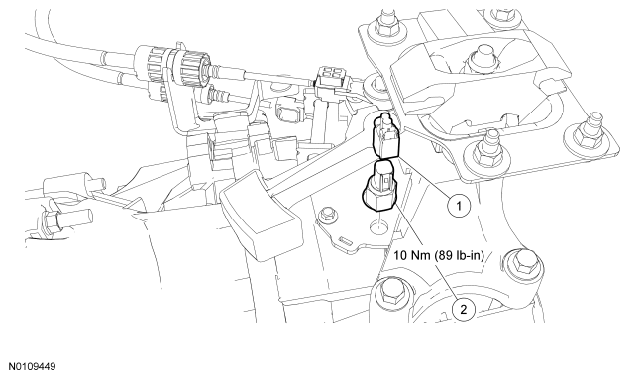

Fig 1: Reversing Lamp Switch With Electrical Connector With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Reversing lamp switch electrical connector (part of 13A690)
2	15520	Reversing lamp switch
