Multifunction Switch Connectors - C202

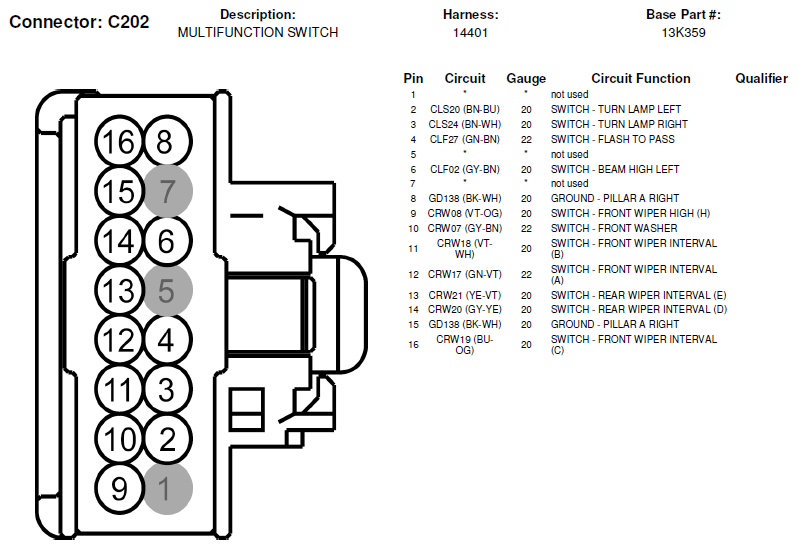

Fig 1: Multifunction Switch Connector End View (C202)

G06303963

Courtesy of FORD MOTOR CO.
