Seat Position Sensor
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

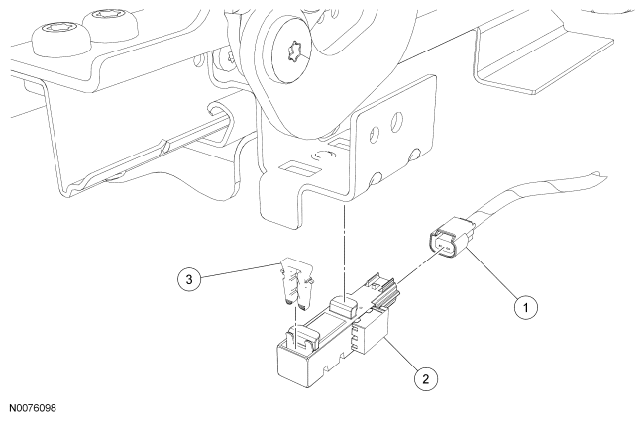

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat position sensor electrical connector (part of 14A699) |
| 2 | 14B416 | Seat position sensor |
| 3 | - | Seat position sensor lock tab |
- Position the driver seat to the rearmost and maximum height position.
- Depower the Supplemental Restraint System (SRS) . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Disconnect the seat position sensor electrical connector.
- Remove the lock tab from the seat position sensor.
- Remove the seat position sensor from the bracket.
- To install, reverse the removal procedure.
- Repower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
