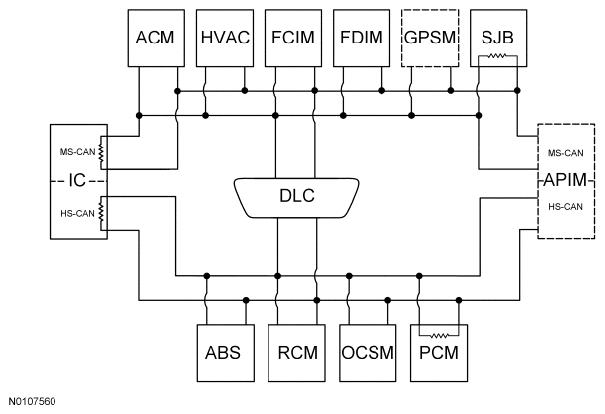

Network Topology
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
TERMINATION MODULE REFERENCE
| Module Name | Network Type | Termination Module |
|---|---|---|
| ABS | HS-CAN | No |
| Accessory Protocol Interface Module (APIM) (if equipped) | HS-CAN MS-CAN |
No |
| Audio Control Module (ACM) | MS-CAN | No |
| Front Controls Interface Module (FCIM) | MS-CAN | No |
| Front Display Interface Module (FDIM) | MS-CAN | No |
| Global Positioning System Module (GPSM) (if equipped) | MS-CAN | No |
| HVAC module | MS-CAN | No |
| Instrument Cluster (IC) (gateway module) | HS-CAN MS-CAN |
Yes Yes |
| Occupant Classification System Module (OCSM) | HS-CAN | No |
| PCM | HS-CAN | Yes |
| Restraints Control Module (RCM) | HS-CAN | No |
| Smart Junction Box (SJB) | MS-CAN | Yes |
