Fuel Pump Control Module Connector - C4033

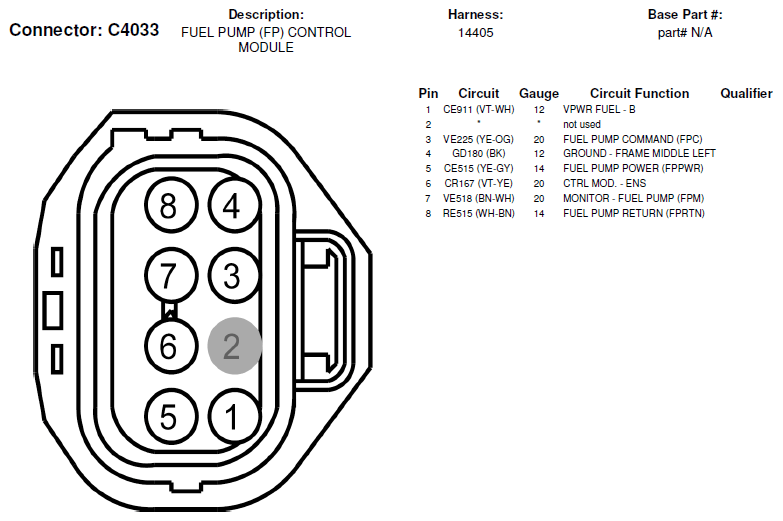

Fig 1: Fuel Pump Control Module Connector End View (C4033)

G06304272

Courtesy of FORD MOTOR CO.
