Driver Seat Track Position Sensor Connector - C356

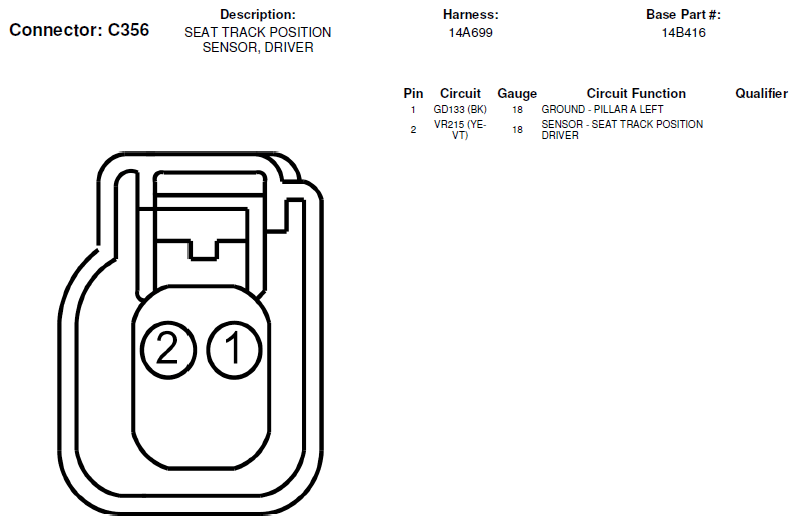

Fig 1: Driver Seat Track Position Sensor Connector End View (C356)

G06304024

Courtesy of FORD MOTOR CO.
