3rd Gear: Notes

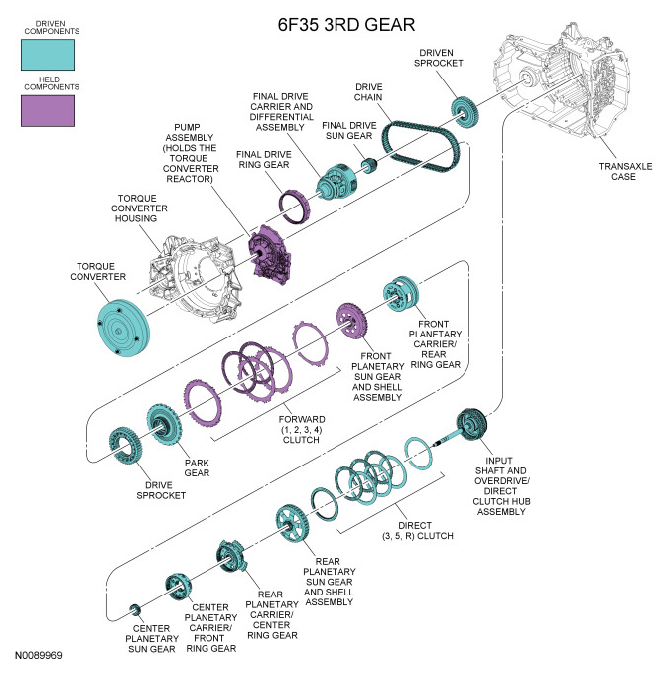

Fig 1: Identifying Transaxle 6F35 3rd Gear Components

G06376593

Courtesy of FORD MOTOR CO.
