Main Control Cover: Installation

Clean the main control cover sealing surface and inspect for damage.

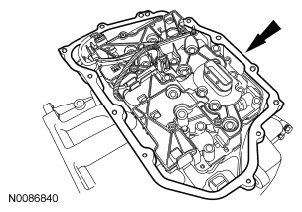

Fig 1: Locating Main Control Cover Sealing Surface
Courtesy of FORD MOTOR CO.
Apply silicone to the main control sealing surface of the transaxle case.

Fig 2: Locating Silicone Applying Area On Transaxle Case Main Control Sealing Surface
Courtesy of FORD MOTOR CO.
Position the main control cover in place.

Fig 3: Locating Main Control Cover
Courtesy of FORD MOTOR CO.

NOTE: Inspect the main control-to-main control cover grommet to make sure that the seal is on the inside of the main control cover. Transmission fluid leak will occur.

NOTE: Install the stud bolts in the locations noted during disassembly.

Tighten the 8 main control cover bolts and 5 stud bolts.
- Tighten to 12 Nm (106 lb-in).

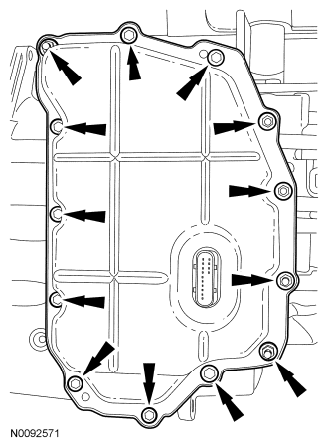

  Fig 4: Locating Main Control Cover Bolts And Stud Bolts
  Courtesy of FORD MOTOR CO.
Position the transmission fluid cooler tube bracket and transmission fluid cooler tube assembly in place and install the 2 nuts.
- Tighten to 9 Nm (80 lb-in).

  Fig 5: Pulling Transmission Fluid Cooler Tube Bracket And Tubes From Transaxle
  Courtesy of FORD MOTOR CO.
Connect the transaxle vehicle harness electrical connector.

Fig 6: Locating Transaxle Vehicle Harness Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the transaxle electrical wiring harness retainers.

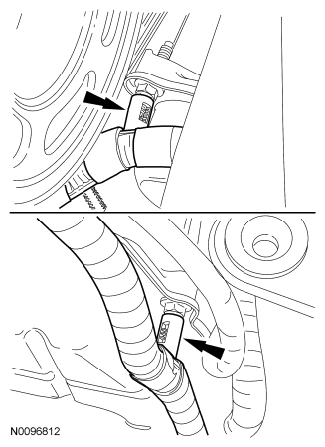

Fig 7: Locating Transaxle Electrical Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Install the LH splash shield and the retainers.

Fig 8: Locating LH Splash Shield Retainers
Courtesy of FORD MOTOR CO.
Fill with clean transmission fluid to the correct level.
