Main Control Valve Body: Assembly

NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely during assembly, install a new valve body.

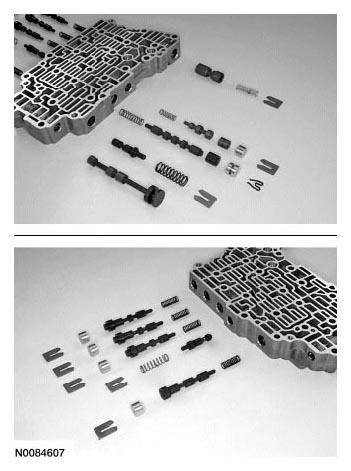

Fig 1: Identifying Valve Body Valves, Springs And Retaining Clips

Courtesy of FORD MOTOR CO.

Install the valve body valves, springs and retaining clips in the main control valve body. See the Valve Body illustration at the beginning of this procedure for valve and spring locations.

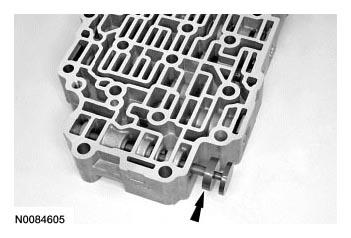

Install the manual valve in the valve body.

Fig 2: Locating Manual Valve
Courtesy of FORD MOTOR CO.

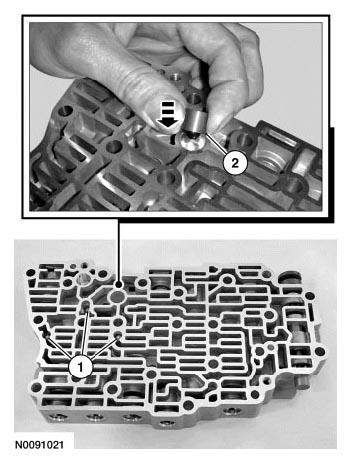

Install the 3 check balls and the damper.
1. Check balls
2. Solenoid damper

  Fig 3: Identifying Check Balls And Damper
  Courtesy of FORD MOTOR CO.
For disassembly and assembly of the solenoid body, refer to SOLENOID BODY ASSEMBLY .

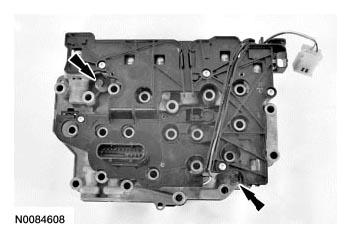

Position the solenoid body assembly on the valve body and install the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 4: Locating Solenoid Body Assembly Bolts
  Courtesy of FORD MOTOR CO.
