Center Support: Disassembly

    NOTE: The forward clutch piston in the center support is the side of the center support with the short legs.

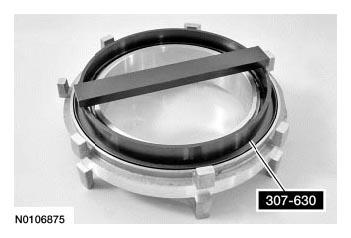

    Fig 1: Identifying Center Support Piston Spring Compressor (307-630) On Forward (1, 2, 3, 4) Clutch Return Spring
    G06377279Courtesy of FORD MOTOR CO.
  1. Install the Center Support Piston Spring Compressor 307-630 on the forward (1, 2, 3, 4) clutch return spring.
  2. Using the Center Support Piston Spring Compressor 307-630 and a press, compress the forward (1, 2, 3, 4) clutch return spring and remove the snap ring.

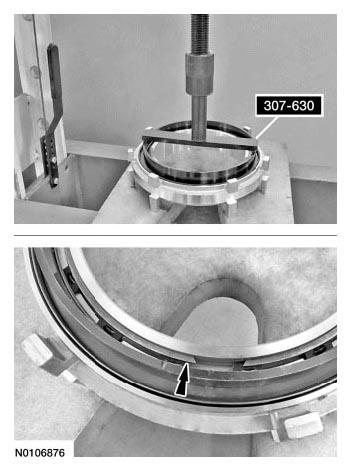

    Fig 2: Identifying Center Support Piston Spring Compressor (307-630) And Snap Ring
    G06377280Courtesy of FORD MOTOR CO.
  3. Remove the Center Support Piston Spring Compressor 307-630.

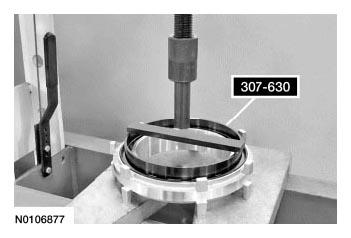

    Fig 3: Identifying Center Support Piston Spring Compressor (307-630)
    G06377281Courtesy of FORD MOTOR CO.
  4. Remove the return spring from the Center Support Piston Spring Compressor 307-630 or the forward (1, 2, 3, 4) clutch piston.

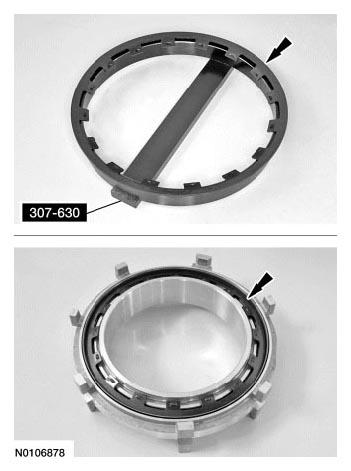

    Fig 4: Identifying Center Support Piston Spring Compressor (307-630) On Forward (1, 2, 3, 4) Clutch Piston
    G06377282Courtesy of FORD MOTOR CO.
  5. Apply 483 kPa (70 psi) of air pressure to the forward (1, 2, 3, 4) clutch piston port and remove the forward (1, 2, 3, 4) clutch piston.

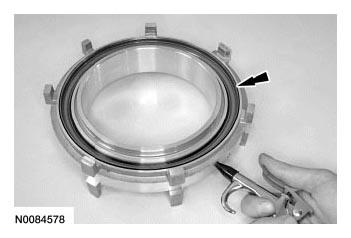

    Fig 5: Applying Air Pressure To Forward (1, 2, 3, 4) Clutch Piston Port
    G06377283Courtesy of FORD MOTOR CO.
  6. Install the Center Support Piston Spring Compressor 307-630 on the low/reverse return spring.

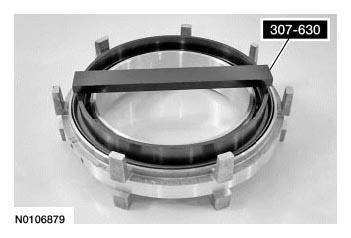

    Fig 6: Identifying Center Support Piston Spring Compressor (307-630) On Low/Reverse Return Spring
    G06377284Courtesy of FORD MOTOR CO.
  7. Using the Center Support Piston Spring Compressor 307-630 and a press, compress the low/reverse clutch return spring and remove the snap ring.

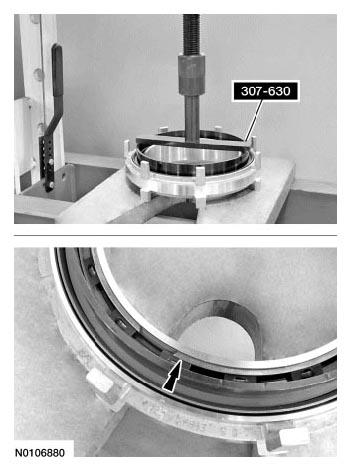

    Fig 7: Identifying Center Support Piston Spring Compressor (307-630) And Snap Ring
    G06377285Courtesy of FORD MOTOR CO.
  8. Remove the Center Support Piston Spring Compressor 307-630.

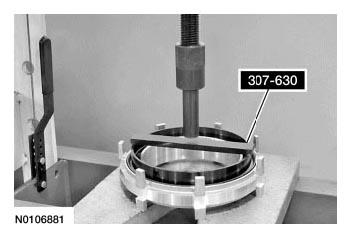

    Fig 8: Identifying Center Support Piston Spring Compressor (307-630)
    G06377286Courtesy of FORD MOTOR CO.
  9. Remove the low/reverse clutch return spring.

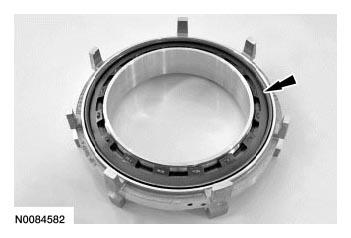

    Fig 9: Locating Low/Reverse Clutch Return Spring
    G06377287Courtesy of FORD MOTOR CO.
  10. Apply 483 kPa (70 psi) of air pressure to the low/reverse clutch piston port and remove the low/reverse clutch piston.

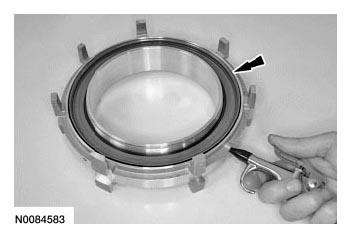

    Fig 10: Applying Air Pressure To Low/Reverse Clutch Piston Port
    G06377288Courtesy of FORD MOTOR CO.
