Removal and Installation

Edge only

1. Pull the switch bezel straight up to unclip it from the door trim panel.

   MKX only

NOTE: LH front shown in illustration, all others similar.

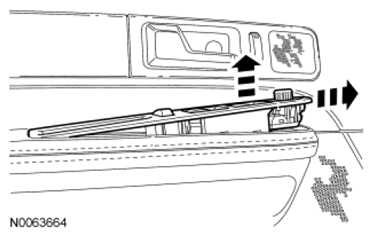

Fig 1: Pulling Up On Front Edge Of Switch Bezel
Courtesy of FORD MOTOR CO.
2. Pull up on the front edge of the switch bezel and pull forward to unhook it from the door trim panel.

   All vehicles

3. Disconnect the electrical connector(s).
4. Unclip the window control switch from the switch bezel.
5. To install, reverse the removal procedure.
