Stability Control Sensor Cluster Connector - C3037
Stability Control Sensor Cluster Connector - C3037

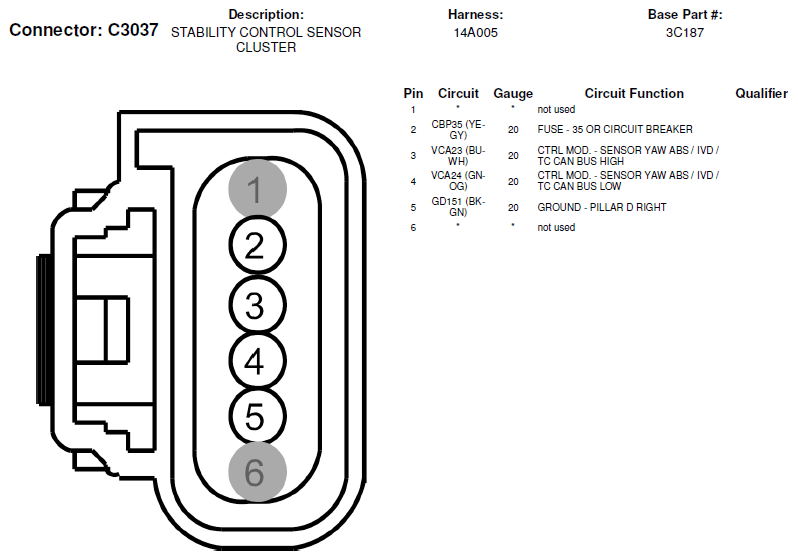

Fig 1: Stability Control Sensor Cluster Connector End View (C3037)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
