Keyless Entry Keypad Connector - C500

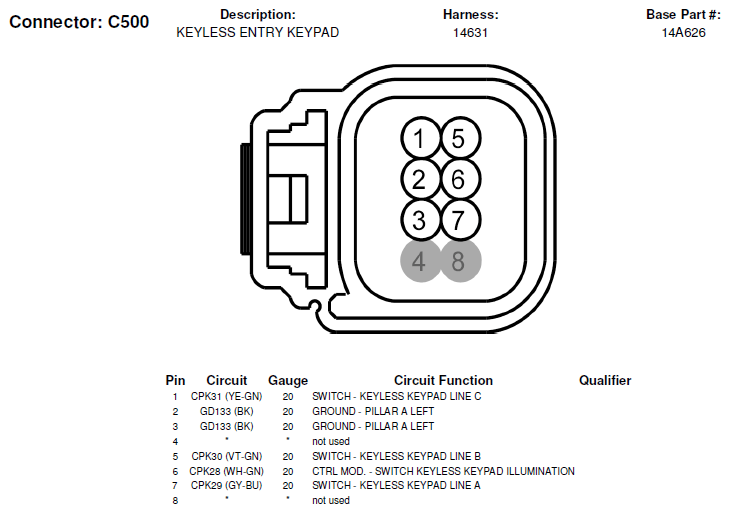

Fig 1: Keyless Entry Keypad Connector End View (C500)

G06287190

Courtesy of FORD MOTOR CO.
