Antenna Module Connector - C2086

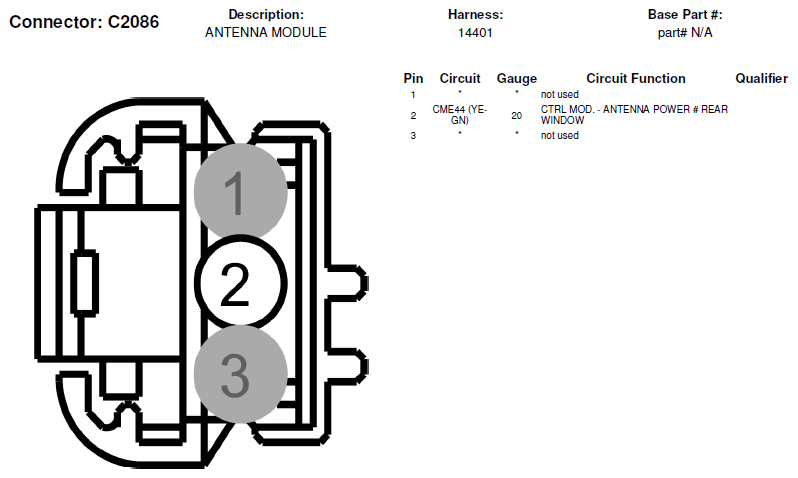

Fig 1: Antenna Module Connector End View (C2086)

G06287274

Courtesy of FORD MOTOR CO.
