Special Tool(s)

SPECIAL TOOL DESCRIPTION CHART

G06064936Courtesy of FORD MOTOR CO.
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

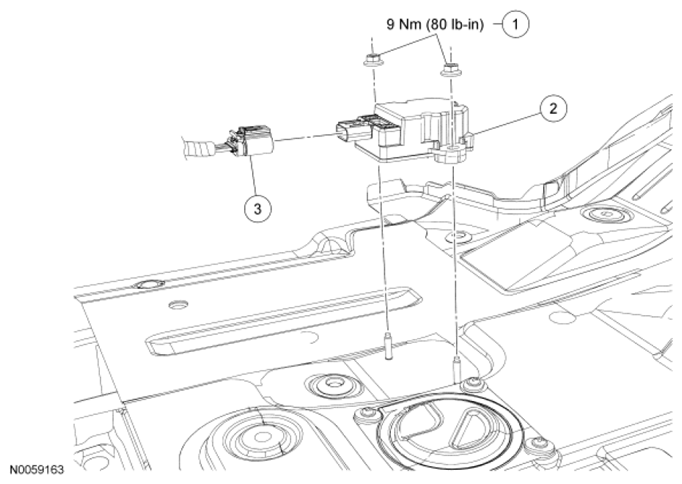

Fig 1: Stability Control Sensor Cluster, Connector And Mounting Nuts With Torque Specifications
G06500844Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W707142 Stability control sensor cluster nuts (2 required)
2 3C187 Stability control sensor cluster
3 - Stability control sensor cluster electrical connector (part of 14A005)
