Memory SET Switch, MKX

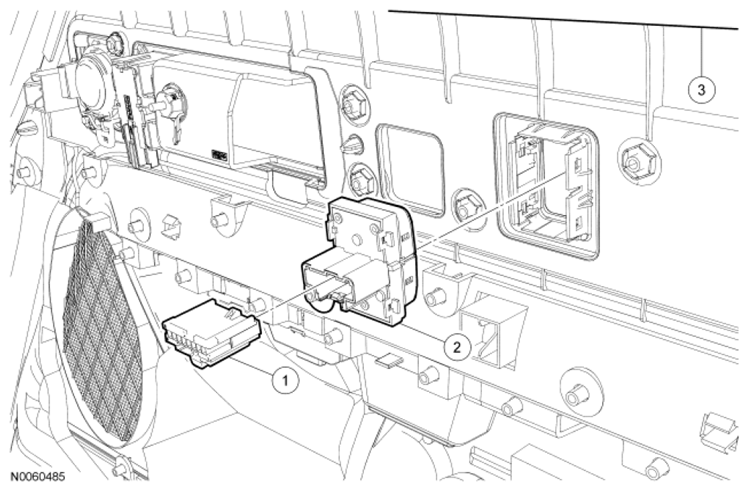

Fig 1: Identifying Memory SET Switch, MKX
G06504484Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Electrical connector (part of 14631)
2 14776 Memory SET switch
3 - Driver door trim panel
