Edge Limited, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission - Automatic Transaxle/Transmission
>>
Description And Operation
>>
Transaxle Operation
>>
5th Gear
>>
Power Flow
Power Flow

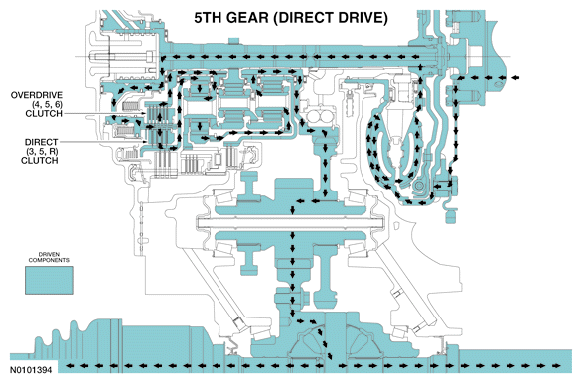

Fig 1: Hydraulic Clutch Power Flow Diagram (5th Gear)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
