Sunload Sensor Connector - C286

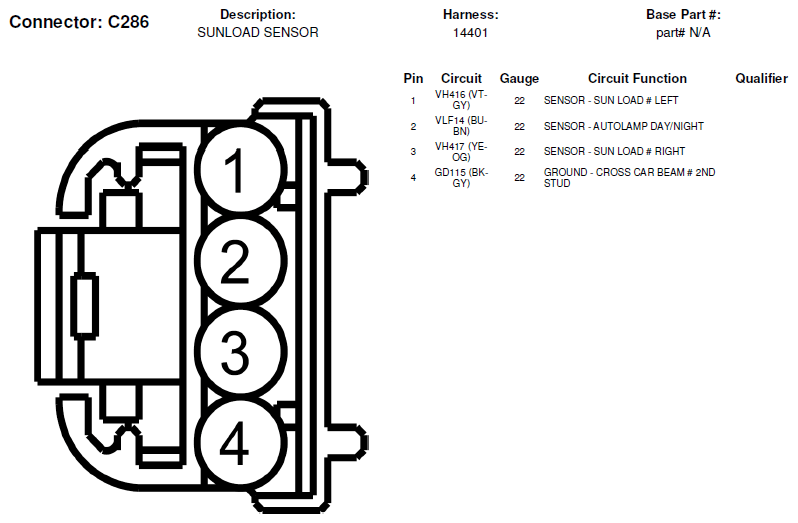

Fig 1: Sunload Sensor Connector End View (C286)

G06287140

Courtesy of FORD MOTOR CO.
