Ambient Lighting Module Connector - C3347

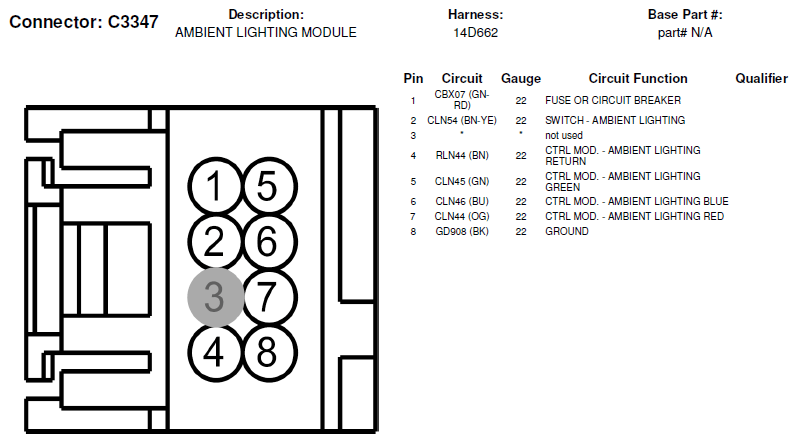

Fig 1: Ambient Lighting Module Connector End View (C3347)

G06287351

Courtesy of FORD MOTOR CO.
