Seat Control Switch With Power Liftgate

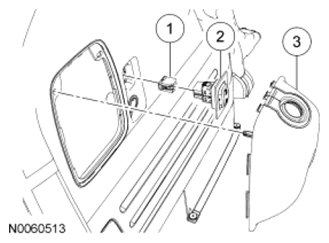

Fig 1: Identifying Seat Control Switch With Power Liftgate
G06504518Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Electrical connector (part of 14A005)
2 14C715 Seat control switch
3 - Power liftgate strut cover
