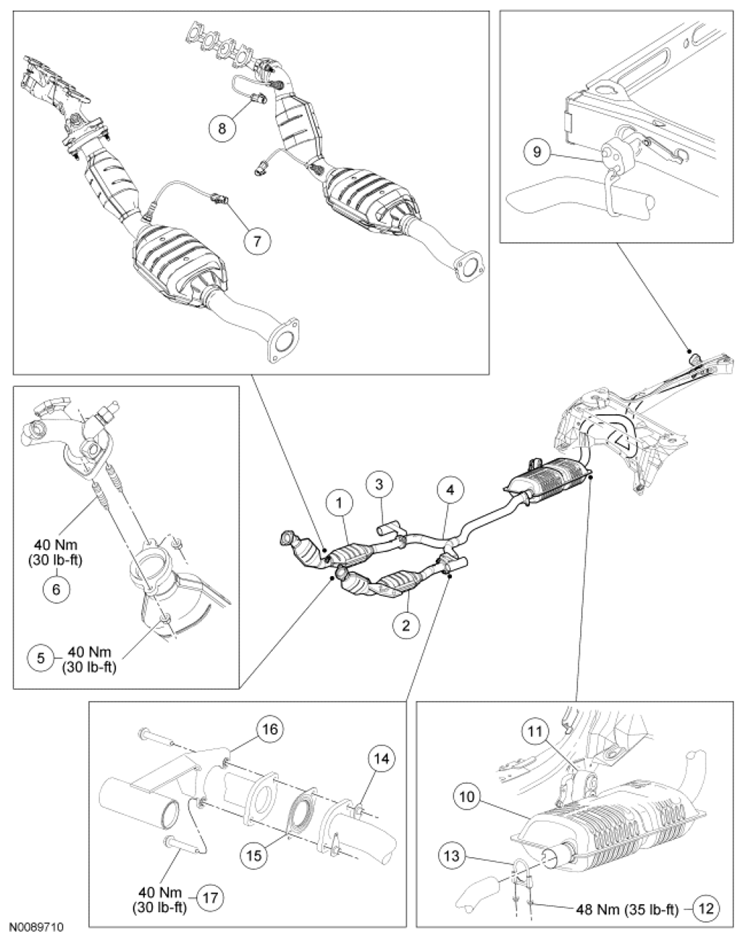

Single Exhaust
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 5E212 | Catalytic converter, RH |
| 2 | 5E212 | Catalytic converter, LH |
| 3 | 5F240 | Damper - RH (except police vehicles) |
| 4 | 5246 | Exhaust inlet pipe |
| 5 | W520414 | Catalytic converter-to-exhaust manifold nut (4 required) |
| 6 | W710732 | Catalytic converter-to-exhaust manifold stud (4 required) |
| 7 | 14A464 | Catalyst Monitor Sensor (CMS) electrical connector (2 required) |
| 8 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connector |
| 9 | 5256 | Tailpipe isolator and bracket |
| 10 | 5C258 | Muffler |
| 11 | 5A262 | Muffler isolator and bracket |
| 12 | N802771 | Clamp nut (2 required) |
| 13 | N802771 | Clamp |
| 14 | 391188 | Flagnut (4 required) |
| 15 | 5E241 | Gasket |
| 16 | 5F295 | Damper - LH (except police vehicles) |
| 17 | 56143 | Catalytic converter-to-exhaust inlet pipe bolt (4 required) |
