Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Battery Junction Box (BJB)

G00434777

Courtesy of FORD MOTOR CO.

Fig 2: Central Junction Box (CJB)

G00434778

Courtesy of FORD MOTOR CO.

Fig 3: Emergency Flasher Relay Block

G00360205

Courtesy of FORD MOTOR CO.

Fig 4: Rear Of Engine

G00434781

Courtesy of FORD MOTOR CO.

Fig 5: Transmission

G00360211

Courtesy of FORD MOTOR CO.

Fig 6: Rear Of Dash Panel

G00434782

Courtesy of FORD MOTOR CO.

Fig 7: Left "A" Pillar

G00434786

Courtesy of FORD MOTOR CO.

Fig 8: Roof (With Opening Panel)

G00360222

Courtesy of FORD MOTOR CO.

Fig 9: Driver's Seat

G00418083

Courtesy of FORD MOTOR CO.

Fig 10: Passenger's Seat

G00418084

Courtesy of FORD MOTOR CO.

Fig 11: Driver's Door

G00434791

Courtesy of FORD MOTOR CO.

Fig 12: Passenger's Door

G00434792

Courtesy of FORD MOTOR CO.

Fig 13: Left Rear Door

G00360229

Courtesy of FORD MOTOR CO.

Fig 14: Right Rear Door

G00360230

Courtesy of FORD MOTOR CO.

Fig 15: Roof

G00418087

Courtesy of FORD MOTOR CO.

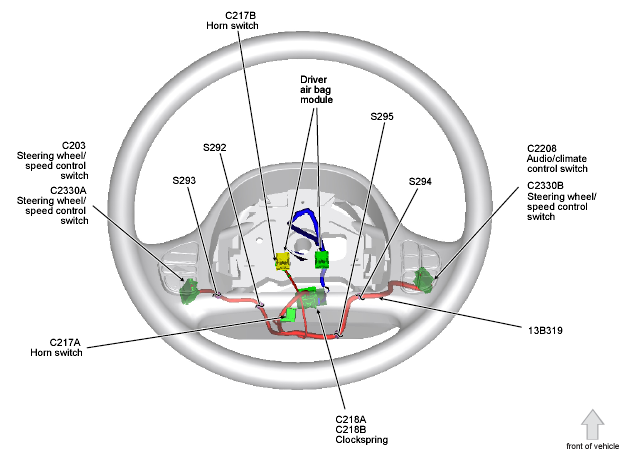

Fig 16: Steering Wheel

G00475517

Courtesy of FORD MOTOR CO.

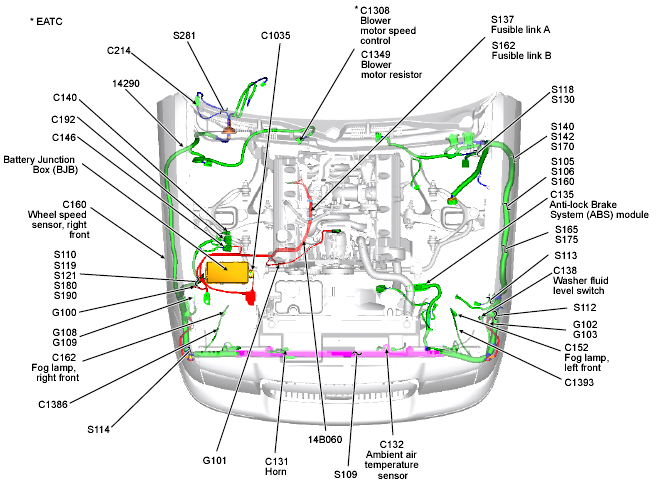

Fig 17: Engine Compartment

G00475511

Courtesy of FORD MOTOR CO.

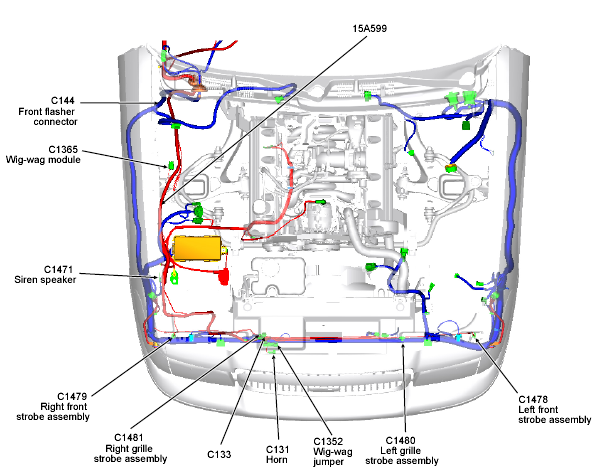

Fig 18: Engine Compartment (Police)

G00475512

Courtesy of FORD MOTOR CO.

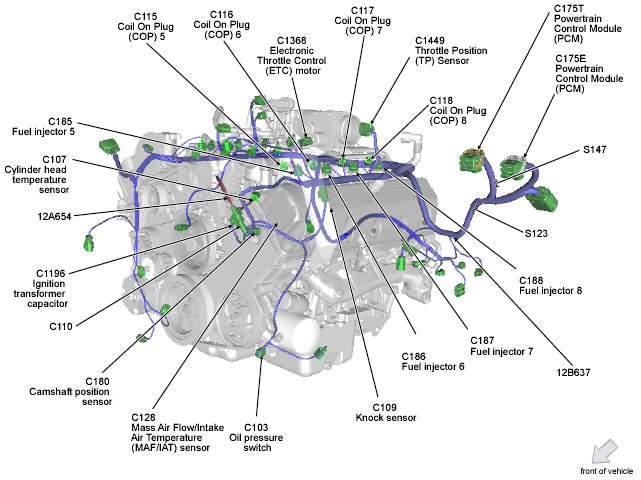

Fig 19: Front Of Engine

G00475513

Courtesy of FORD MOTOR CO.

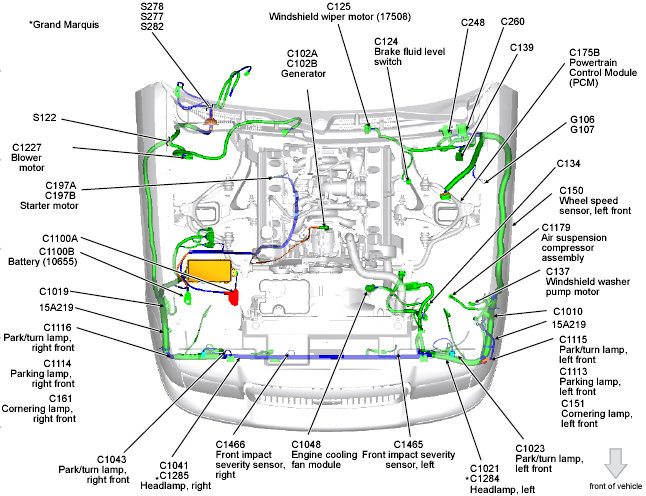

Fig 20: Engine Compartment

G00475510

Courtesy of FORD MOTOR CO.

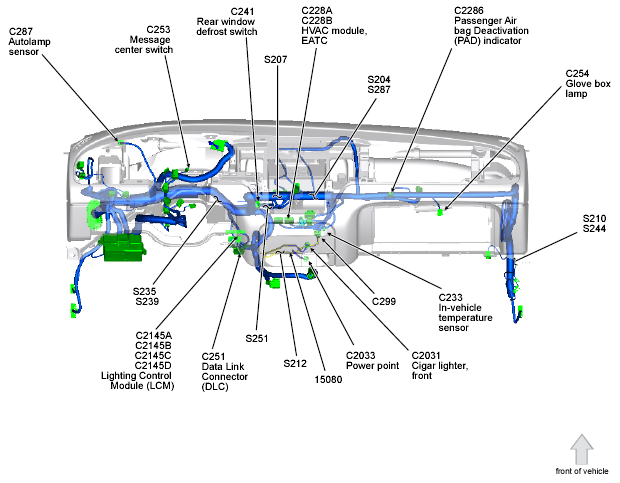

Fig 21: Front Of Dash Panel

G00475514

Courtesy of FORD MOTOR CO.

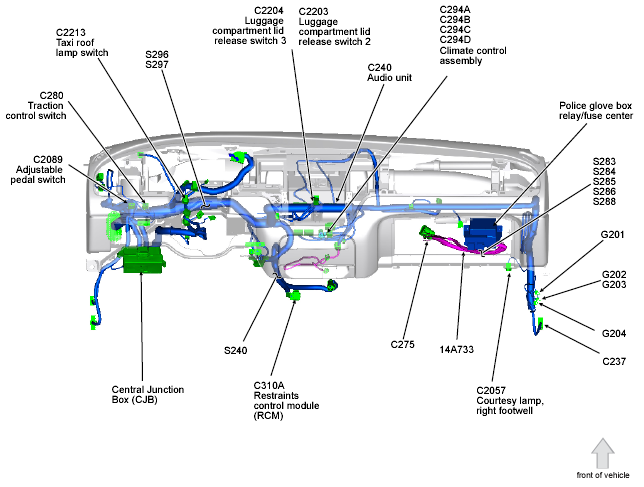

Fig 22: Front Of Dash Panel

G00475515

Courtesy of FORD MOTOR CO.

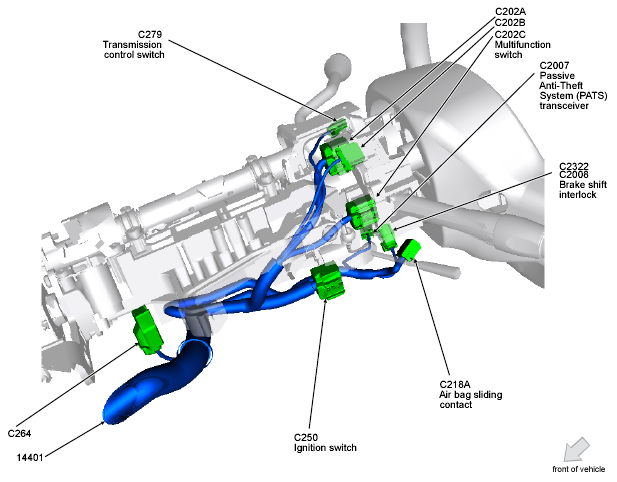

Fig 23: Steering Column

G00475516

Courtesy of FORD MOTOR CO.

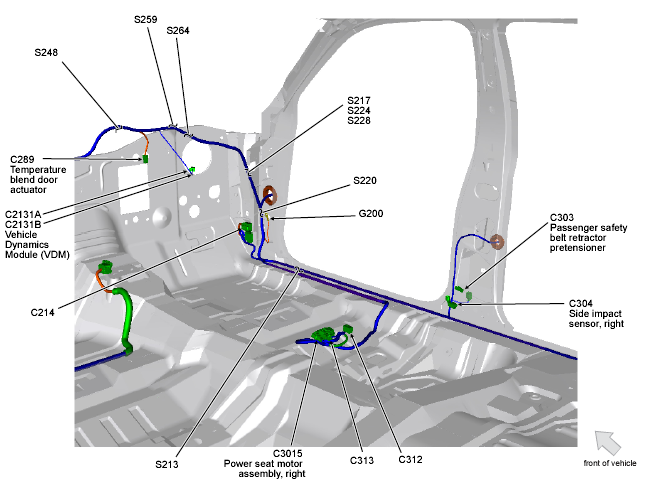

Fig 24: Right Front Of Passenger Compartment

G00475518

Courtesy of FORD MOTOR CO.

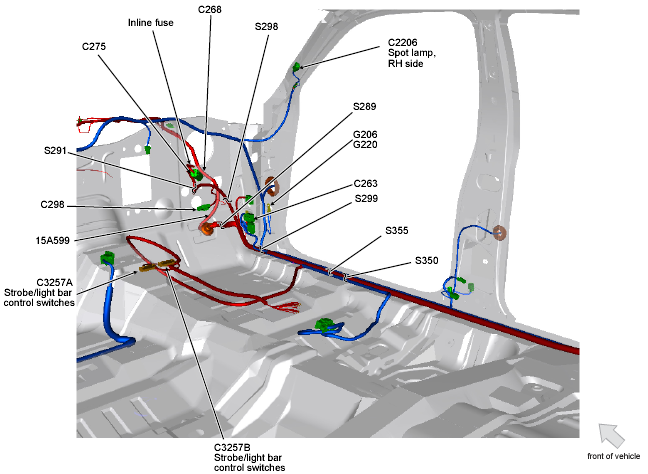

Fig 25: Right Front Of Passenger Compartment

G00475519

Courtesy of FORD MOTOR CO.

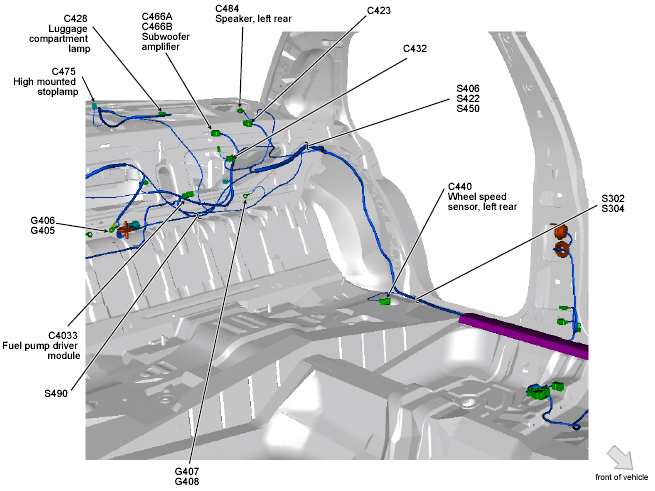

Fig 26: Left Rear Of Passenger Compartment

G00475520

Courtesy of FORD MOTOR CO.

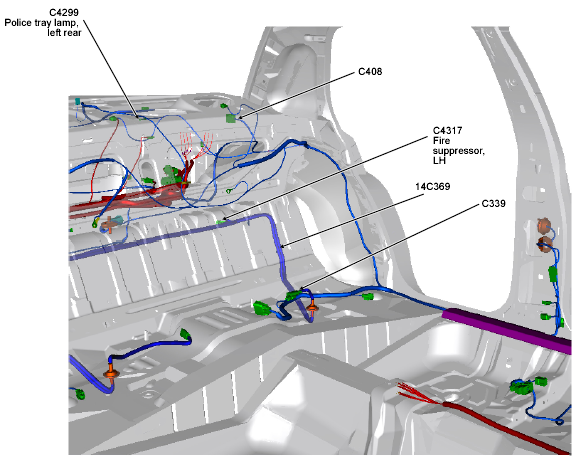

Fig 27: Left Rear Of Passenger Compartment

G00475521

Courtesy of FORD MOTOR CO.

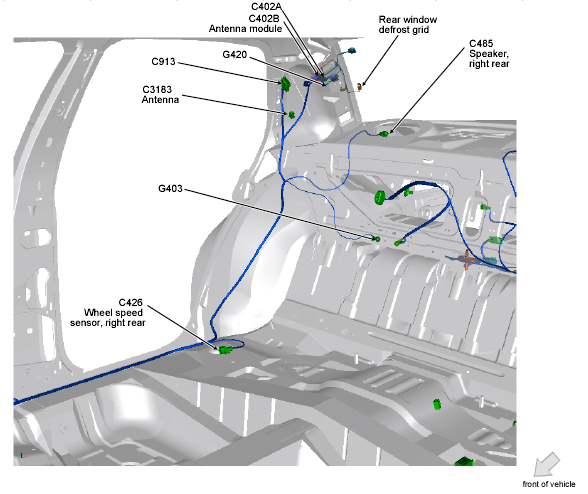

Fig 28: Right Rear Of Passenger Compartment

G00475522

Courtesy of FORD MOTOR CO.

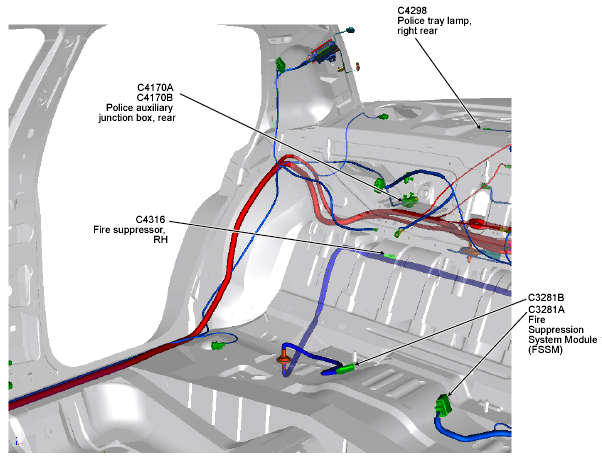

Fig 29: Right Rear Of Passenger Compartment

G00475523

Courtesy of FORD MOTOR CO.

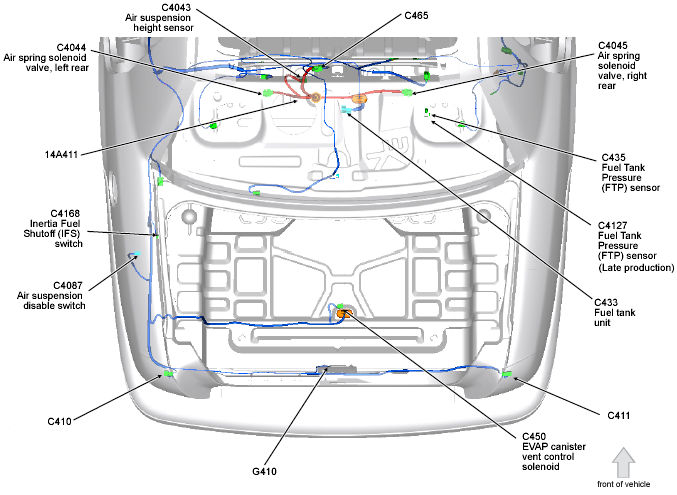

Fig 30: Trunk

G00475525

Courtesy of FORD MOTOR CO.

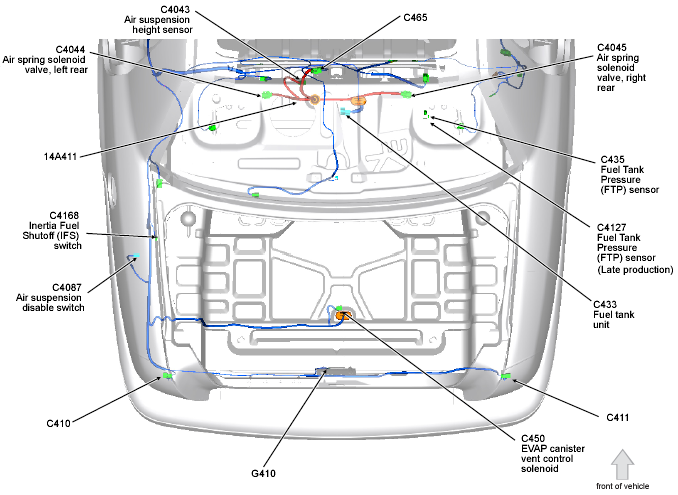

Fig 31: Trunk

G00475524

Courtesy of FORD MOTOR CO.

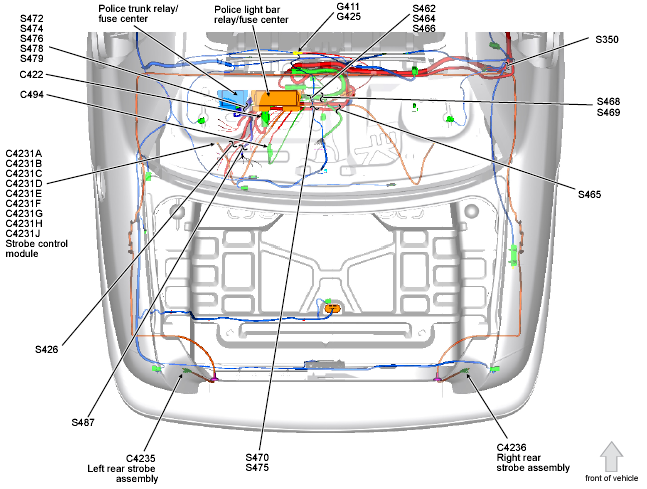

Fig 32: Trunk

G00475526

Courtesy of FORD MOTOR CO.

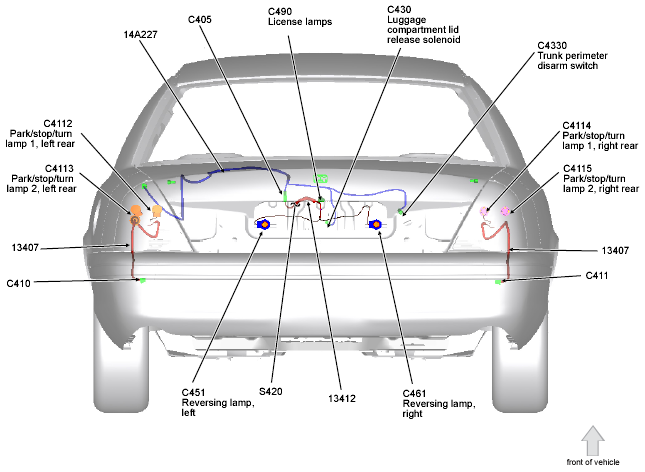

Fig 33: Rear Of Vehicle

G00475527

Courtesy of FORD MOTOR CO.

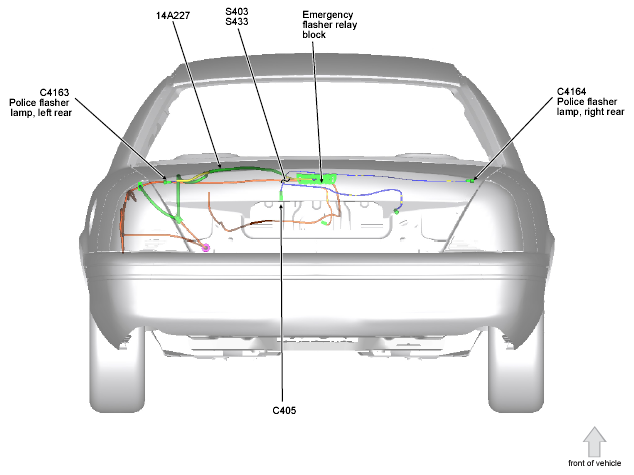

Fig 34: Rear Of Vehicle

G00475528

Courtesy of FORD MOTOR CO.
