Transmission Support Crossmember: Notes

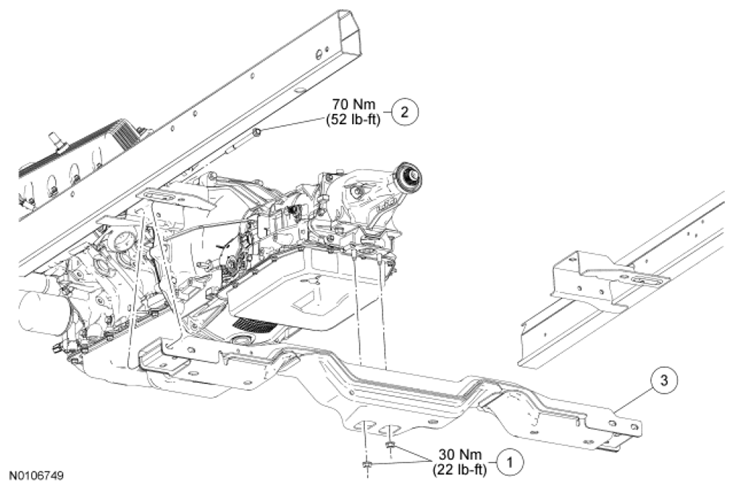

Fig 1: Transmission Support Crossmember With Torque Specifications
G06565067Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W520514 Transmission insulator and retainer nuts
2 W709208 Transmission support crossmember bolt (4 required)
3 5027 Transmission support crossmember
