Transmission Insulator and Retainer: Notes

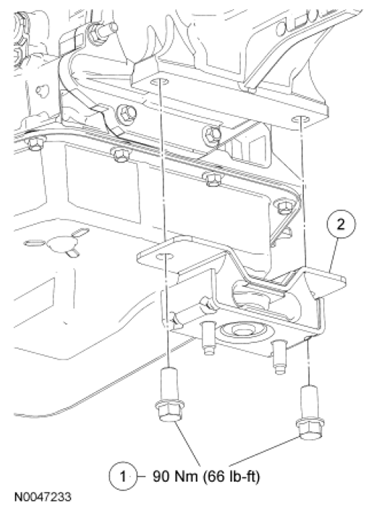

Fig 1: Transmission Insulator And Retainer With Torque Specifications
G06565064Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 387174 Transmission insulator and retainer bolts
2 6D091 Transmission insulator and retainer
