Transmission Filler Tube: Notes

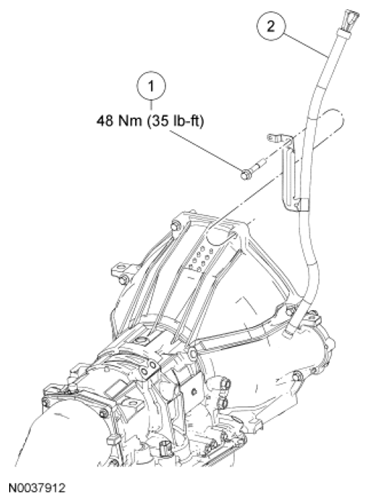

Fig 1: Transmission Filler Tube With Torque Specifications
G06564967Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 N606065-S Transmission filler tube bolt
2 7A228 Transmission filler tube
