Output Shaft Speed (OSS) Sensor: Notes

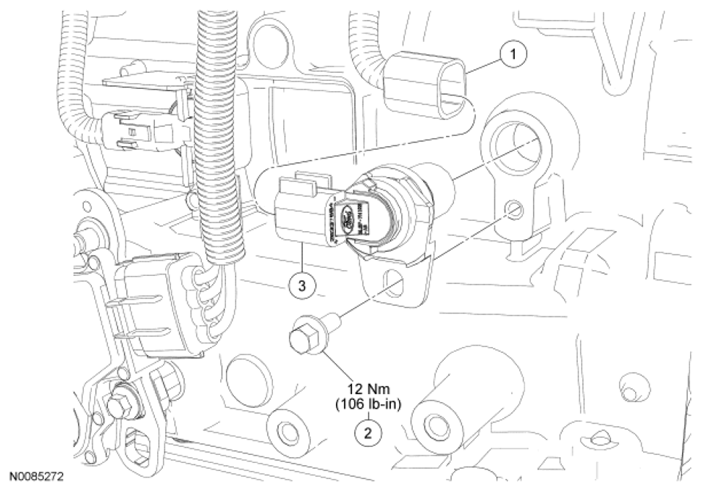

Fig 1: Output Shaft Speed (OSS) Sensor With Torque Specifications
G06565079Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Output Shaft Speed (OSS) sensor connector
2 N605771 OSS  sensor bolt
3 7H103 OSS  sensor
