Main Control Valve Body: Removal

WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in FIRE SUPPRESSION SYSTEM . Failure to follow the instructions may result in serious personal injury.

Drain the transmission fluid and remove the transmission fluid pan and transmission fluid filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
Disconnect the transmission internal harness from the solenoids.
1. Disconnect Shift Solenoid A (SSA) and Shift Solenoid B (SSB).
2. Disconnect the Torque Converter Clutch (TCC).
3. Disconnect the Electronic Pressure Control (EPC) solenoid.
4. Disconnect the transmission internal harness connector.
5. Disconnect the Transmission Fluid Temperature (TFT) sensor.

  Fig 1: Identifying Transmission Internal Harness Connector
  Courtesy of FORD MOTOR CO.
Remove the manual control valve detent lever spring and bolt.

Fig 2: Locating Manual Control Valve Detent Lever Spring And Bolt
Courtesy of FORD MOTOR CO.
Remove the bolt and the EPC solenoid bracket.

Fig 3: Locating EPC Solenoid Bracket And Bolt
Courtesy of FORD MOTOR CO.

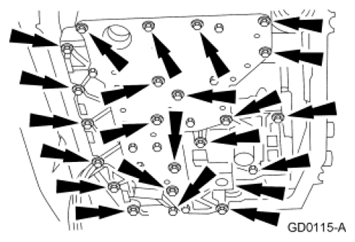

Remove the 23 valve body to case bolts and the EPC bracket bolt.

Fig 4: Locating Valve Body
Courtesy of FORD MOTOR CO.
Remove the main control valve body and discard the pump outlet screen.

Fig 5: Locating Main Control Valve Body
Courtesy of FORD MOTOR CO.
